High Speed Konica Aqua Head Flex Printing Machine
Specification

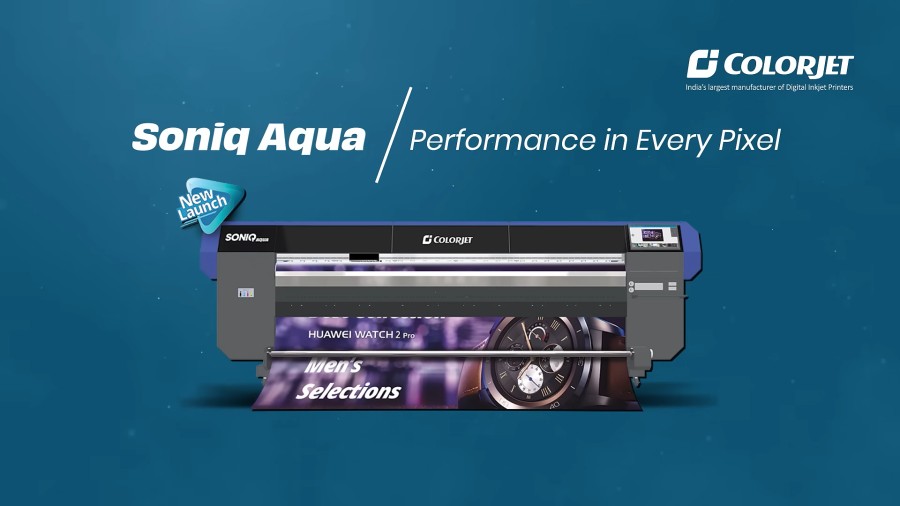

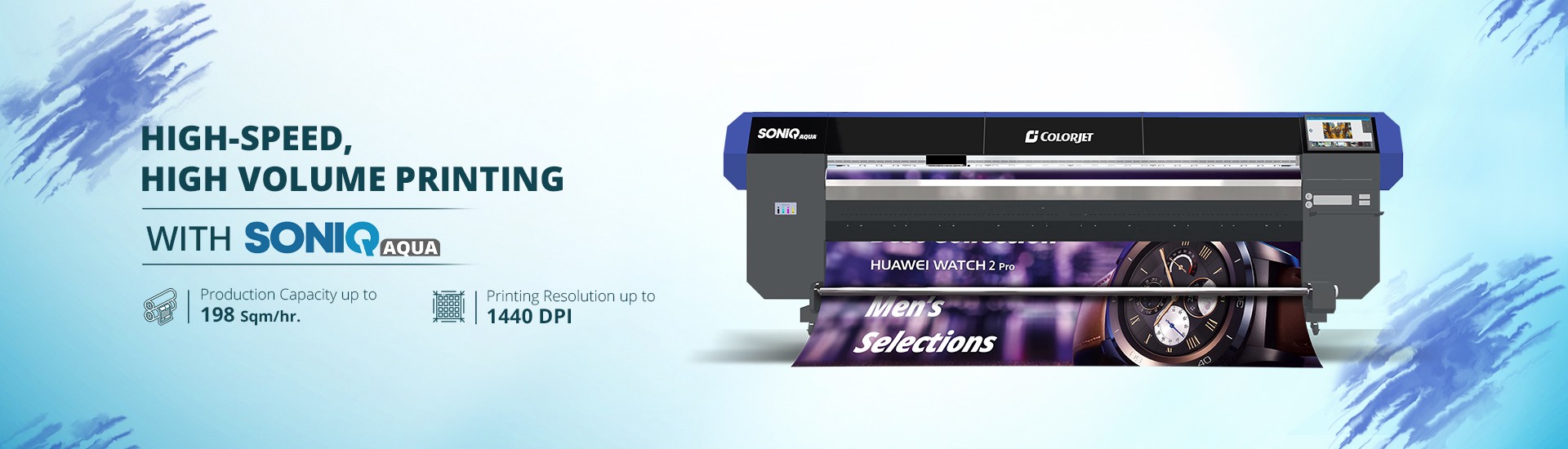

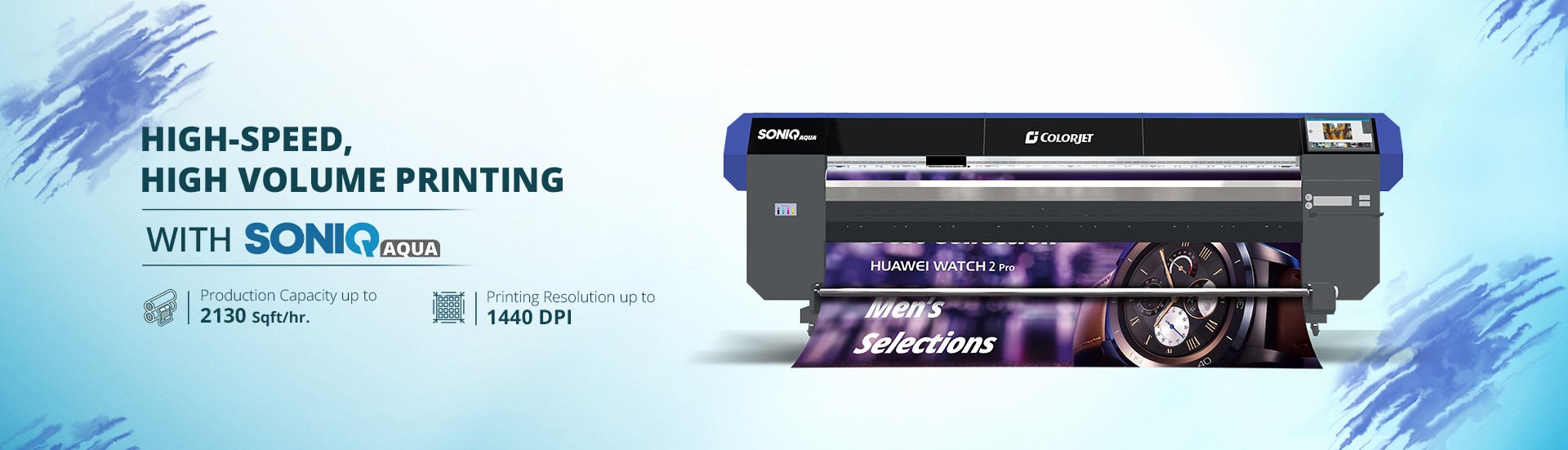

Introducing the SoniQ Aqua - High Speed Konica Aqua Head Flex Printing Machine, a game-changing 3.2-meter HQ Solvent Printer engineered to redefine the standards in both indoor and outdoor signage production.
With 4/8 high-speed KM heads, it offers unmatched upgradability, ensuring future-proof performance. Delivering stunning quality at 2130 sqft. /hr (8 Heads), it's perfect for indoor and outdoor needs. Its features streamline workflows and boost productivity, making it the ultimate solution for large format print businesses.
SONIQ AQUA |
|||||
| Model |
SC4428 |
SC8428 |
|||
| Printing Technology |
Drop-on-demand, Piezo electric inkjet |
||||
| Print Heads |
Konica Minolta Aqua |
||||
| No. of Print Heads |
4 |
8 |
|||
| Media | Width |
3300 mm (129 in.) |
|||
| Thickness |
Maximum 3.0 mm (120 mil )with liner (flexible) |
||||
| Roll Outer Diameter |
Maximum 300mm (12inch), 50.8 (2 in) |
||||
| Roll Weight |
Maximum 90 kgs |
||||
| Core Diameter |
76.2mm (3 inch) |
||||
| Types |
SAV, PAV Banner, Backlite Film, Window Film, Fabric (Solvent Base) |
||||
| Printing Width |
Maximum 3200mm (126 inch.) |
||||
| Inks | Types |
Solvent/Mild Solvent inks |
|||
| Color |
4 Colors (CMYK) |
||||
| Printing Resolution (dots per inch) |
Maximum up to 1440 dpi |
||||
| Distance Accuracy |
Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater |
||||
| Media Heating System |
Pre-heater and post-heater, setting range for the preset temprature: 30 to 60℃. Dryer setting range for the preset temperature : 30 to 60℃ |
||||
| Connectivity |
High speed USB 3.0 or more |
||||
| Power Requirements (Peak) |
AC 220 V ±10%, 20 A, 50/60 Hz |
||||
| Dimensions ( Printer only) |
4689mm X 1079mm X 1571mm(WxLxH) |
||||
| RIP Software |
ColorJet Edition RIP |
||||
| Weight |
Net Weight : 550 KG, Gross Weight : 742 KG |
||||
| Environmental | Power ON |
Temperature: 18 to 28℃ Humidity: 20 to 40%RH (non-condensing) |
|||
| Power OFF |
Temperature: 5 to 40℃ Humidity: 20 to 80%RH (non-condensing) |
||||
| Speed (In Sq. Meter/Hrs) |
Print DPI |
Passes |
Sq Mtrs/Hr (4 Heads) |
Sq Feet/Hr (8 Heads) |
|
| Mode 1 |
540x720 |
2 |
1050 |
2130 |
|
| Mode 2 |
540x1080 |
3 |
700 |
1410 |
|
| Mode 3 |
540x1440 |
4 |
525 |
1050 |
|
| Mode 4 |
540x1080 |
6 |
350 |
700 |
|
| Mode 5 |
540x1440 |
8 |
260 |
520 |
|
Printer Highlights
Konica Aqua Printhead
First in the world to accommodate the Konica Aqua 6 pl print head for solvent printing. The Aqua print head is designed to optimize the drop velocity for individual nozzles offering unmatched print quality.
3 Level Grayscale
The Aqua printhead is capable to eject droplets of multiple sizes providing a rich finish and unbeatable print quality. Gradients will now be smoother and realistic textures can be reproduced with the multiple drop sizes.
Precisely Engineered Print Bed
The new bed ensures seamless media movement by optimizing alignment with print engine components and distributing suction effectively, resulting in smooth, wrinkle-free output.
8 Heads Compatibility
Provides the option for 8 print heads, supporting up to 8 KM print heads. This feature significantly expands the printing capabilities, allowing for higher resolution, faster printing speeds, and the ability to handle a broader range of colors and ink typ
Efficient Drying System
Incorporates an efficient pre and post heating bed system with fans included for uniform drying of the printed media. The pre and post drying process enables faster production speeds and reduces the risk of smudging or ink transfer.
