Sustainable Pigment Printing Technology
Specification
Specially designed & engineered to deliver exceptional design

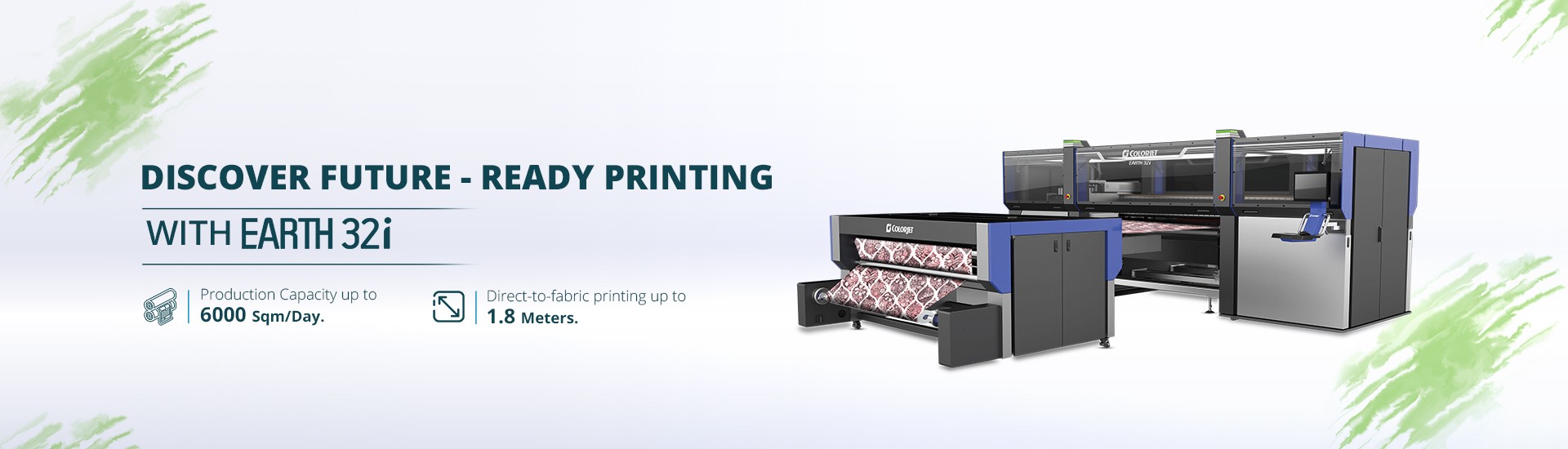

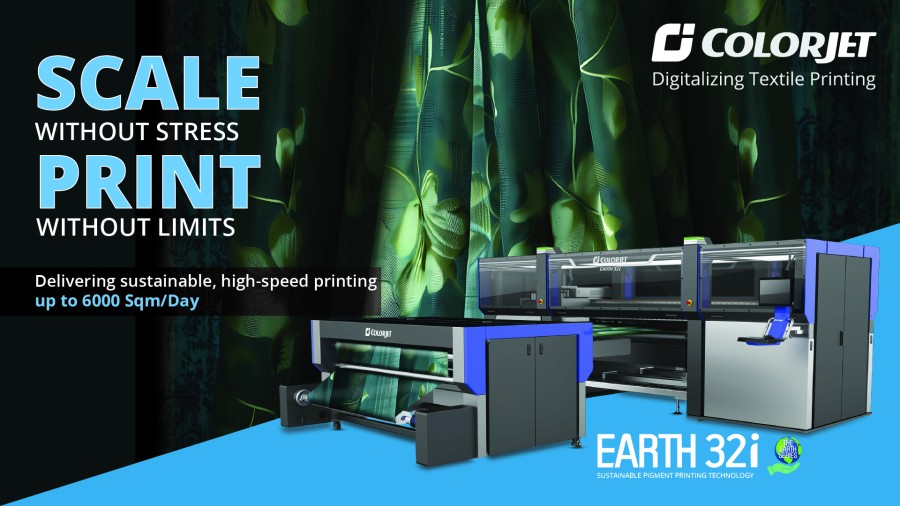

Earth 32i, a revolutionary digital textile printing solution that seamlessly blends cutting-edge technology with industrial precision. Seamlessly integrated with 32 advanced 6 PL Konica Minolta Print heads and a new design, it sets up a new benchmark for clarity and precision in eco-friendly digital textile printing. The Earth 32i's polymerization process at 160 degrees after printing ensures excellent colour fastness, and enduring print quality.
THE EARTH 32i |
||||
|
CONFIGURATION |
EB8329 |
|||
| Printing Technology |
Drop-on-demand, Piezo Electric Inkjet |
|||
| No. of Print Heads |
32 (6PL) |
|||
| Print Heads | Type |
Industrial Grade Jetting Assemblies |
||
| Resolution |
Upto 1440 DPI |
|||
| Height Adjustment |
upto 30mm |
|||
| Cleaning Method |
Pressure Purge and Wiping |
|||
| Wetting Control |
Piezoelectric Actuations |
|||
| Inks | Types |
Earth Pigment |
||
| No of colors |
8 |
|||
| Supply |
10 Ltr, Bulk ink Supply System with inline degassing |
|||
| Fabric | Types |
Cotton,Viscose,Polyester,Polyamide,Silk,Wool |
||
| Max.Thickness |
upto 10mm |
|||
| Max. Printing Width |
upto 1800 |
|||
| Roll Diameter |
400mm |
|||
| Fabric Drying System |
Infrared Heaters |
|||
| Operating Interface |
Touch Screen |
|||
| Printing Interface |
USB 3.1 |
|||
| RIP Software Supported |
NeoStampa (Colorjet Editions) |
|||
| File Format |
JPEG, TIFF, BMP/PDF (RGB, CMYK) |
|||
| Power Supply |
220 V, 104 A Single / Three phase load distribution, 50Hz |
|||
| Operating Conditions |
Temperature: 20 to 28°C Humidity: 55 to 75% RH(non-condensing) |
|||
| Printer Dimension / Net Weight |
2342 x 5020 x 1975 mm (LxWxH) / 3500 Kg Approx. |
|||
| Dryer Dimension / Net Weight |
2355 x 2612 x 1125 mm (LxWxH) / 850 Kg. Approx. |
|||
| Feeder Dimension / Net Weight |
1010 x 2468 x 1221 mm (LxWxH) / 575 Kg Approx. |
|||
| Speed In Sq. Meter/Hrs) |
Print DPI |
Passes |
EB8329 |
|
| Mode 1 |
|
2 |
324 |
|
| Mode 2 |
|
3 |
212 |
|
| Mode 3 |
360x1440 |
4 |
156 |
|
| Mode 4 | 540x720 | 2 | 226 | |
| Mode 5 | 540x1080 | 3 | 147 | |
| Mode 6 | 540x1440 | 4 | 110 | |
Printer Highlights
Maximizing Performance with Turbocharged Nozzle Pumping
Attain larger drop sizes and increased depth while maintaining optimal speed. Turbocharged design ensures efficiency for superior performance without compromising productivity.
Superfine Nano Nozzles
Enhanced sharpness through superfine drop size using Nano nozzles. Achieve precise details and vibrant colors, optimizing print quality for intricate designs and high-resolution images, ensuring exceptional results.
Variable Drop Printing Option
Multidrop to Variable drop printing option help in achieving more accurate color tones along with smoother colour Gradiance.
Enhanced Fabric Feeding Efficiency
New rollers ensure wrinkle-free feeding with proper fabric tension. Three adjustable gear mechanisms control tension across spreader, banana, and tensioner rollers. Option for Osci+TM precise spiral spreader rotator for hosiery printing.
Optimized And Enhanced Safety Standards
A safety rope sensor and emergency staff switch have been added for enhanced safety during operations, along with four emergency switches. Eye bolts allow for easy machine lifting via hoist.
