Fabjet Grand

OVERVIEW

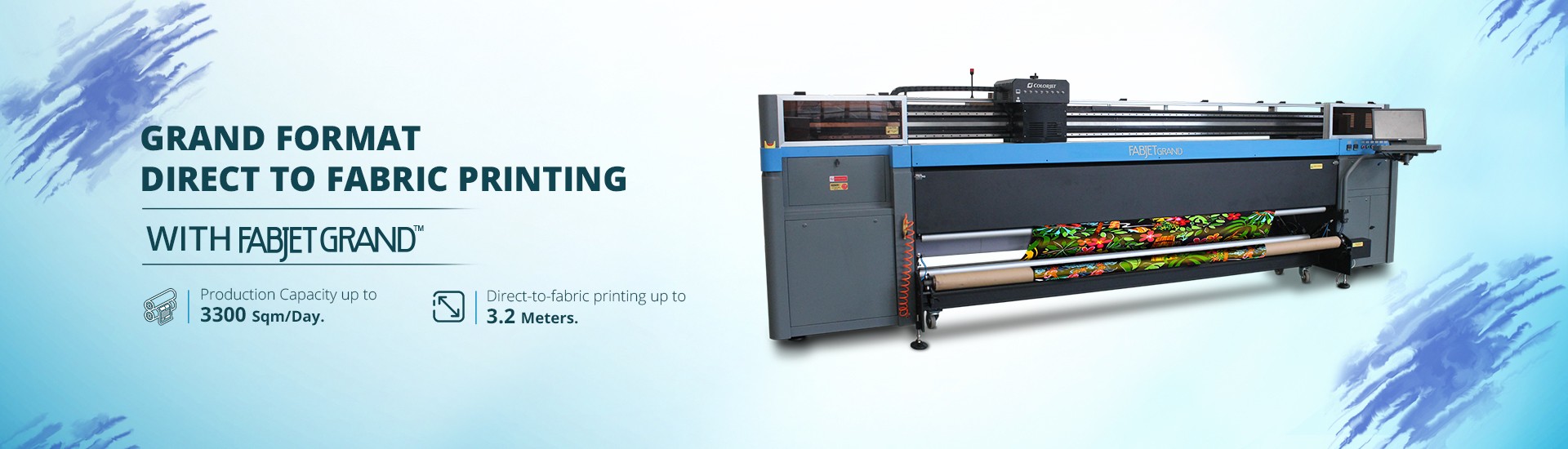

Grand Format Direct to Fabric Printer


FABJET GRAND is the perfect solution to print directly on various types of fabric for short-run and customized designs printing for home furnishing businesses like bedsheets. It is an excellent wide-format fabric printer for mass production of home furnishing textiles FABJET GRAND prints consistently on cotton and polyester-based fabrics used in home furnishings. It uses environmental-friendly aqueous-based pigment inks.


FEATURES

FABJET GRAND FEATURES TO EXPAND YOUR BUSINESS


fabric printer aivc technology

SPECIALLY DEVELOPED AIVC

  • Proprietory AIVC technology for consistent print performance by maintaining constant Jetting conditions even in varying environmental conditions

FEED SYSTEM

  • Automated feed and take up system synchronised with tension bars for unattended long printruns on various types of fabric.

MEDIA TENSION CONTROL SYSTEM

  • Pneumatics control-based tension-bar on media feed and take up, to ensure consistent tension on fabric. Automatically adjusts, based on type of fabric being used.

WIPERS

  • Automatic wiping system which wipes excess ink and dust from the print head surface.

INDUSTRIAL GRADE JETTING ASSEMBLY

  • Superior print-head durability ensures longer lifespan.
  • Consistent print quality across the entire machine lifespan.
  • Consistent performance even with varying viscosity.
  • Low maintainance, easy to handle, less operational wastage.

INFLATABLE RODS

  • Saves media loading time and prevents media skewing
  • Ensures uninterrupted supply of media even if the core is deformed.
fabric printer wiper

rip software

RIP

  • Equipped with advance color management engine and color processing tools.
  • Faster processing of files saves time, increases productivity.
  • User-friendly and easy to use color controls to manage colors.
  • Advanced dither patterns for photo-realistic output.
  • Fully customized printer setting for enhanced print results.
  • Smoother gradations, vibrant colors for superior print quality.
  • Inbuilt ICC profiles for various media and print modes.

INK

  • Non-polluting aqueous based pigment inks
  • Wider color gamut of inks for vibrant color prints
  • High density colors for higher coverage per liter.
  • Fast drying.
  • Optimized for best performance and longevity of print heads.
Wider color gamut ink

VARIABLE DROP TECHNOLOGY

  • Uses 3 dot types to produce smoother gradations, vivid colors and sharp images; maintains details in mid tone areas
variable drop technology

head cleaning technology

HEAD HEIGHT ADJUSTMENT

  • Helps accommodate upto 10 mm thickness; can be changed during printing itself, if needed

CAPPING STATION

  • Prevents inks from drying inside the print head when printer is not in use for long time; also protects head from dust which might cause damage to print head
capping

SPECIFICATION

FABJET GRAND

CONFIGURATION
PA4824
PA8824
PA8164
Printing Technology
Drop-on-demand, Piezo Electric Inkjet
No. of Print Heads
8
8
16
Print Heads Type
Industrial Grade Jetting Assemblies
Resolution
Upto 1400 DPI
Height Adjustment
upto 10 mm
Cleaning Method
Pressure Purge and Wiping
Wetting Control
Piezoelectric Actuations
Inks Types
Reactive / Disperse / Pigment / Acid
No of colors
4
8
8
Supply
2.5 Ltr, Bulk ink Supply System with inline degassing
Fabric Types
Cotton,Viscose,Polyester,Polyamide,Silk,Wool
Max.Thickness
Upto 5mm
Max.Width
3200mm
Roll Width
400mm
Fabric Drying System
Infrared Heaters
Operating Interface
Touch screen
Printing Interface
High Speed USB
RIP Software Supported
ErgoSoft (Colorjet Editions)
File Format
JPEG, TIFF, BMP/PDF (RGB, CMYK)
Power Supply
220 V, 32 A Single/Three phase load distribution, 50Hz,
Operating Conditions
Temperature 18 to 28 C, Humidity: 35-80% RH ( Non-Condensing)
Outer Dimension/Weight
5300 mm x 1440 mm x 1650 mm (LxWxH) 1800 Kg Approx.
Speed (In Sq. Meter/Hrs)
Print DPI
Passes
PA4824
PA8824
PA8164
Mode 1
540 x 720
2
167
98
165
Mode 2
540 x 1080
3
116
68
114
Mode 3
540 x 1440
4
87
51
85
Mode 4
540 x 1080
6
58
34
56
Mode 5
540 x 1440
8
46
27
44
Mode 1
360 x 1080
3
-
-
-
Mode 2
360 x 720
4
-
-
-
Mode 3
720 x 720
4
-
-
-
Mode 4
720 x 540
6
-
-
-
Mode 5
720 x 720
8
-
-
-

APPLICATIONS

Cushion Covers

fabric printer application

Table Covers

fabric printer application

Bed Covers

fabric printer application

Sofa Covers

fabric printer application

Bed Sheet

fabric printer application

Curtains

fabric printer application
