Falcon – India's First 64-Head High-Production Direct-to-Fabric Printer

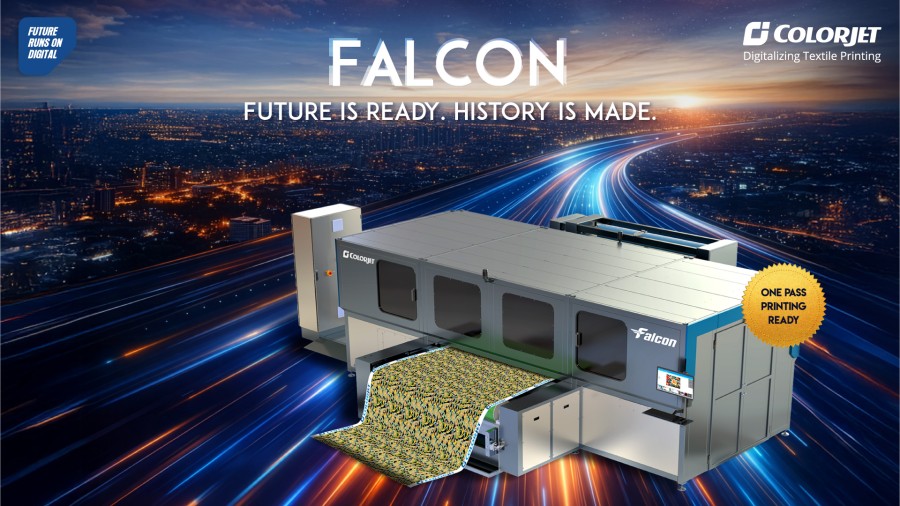

Built to meet the evolving demands of the modern textile printing industry, Falcon is engineered to deliver premium print quality, effortless operation, and high-speed performance in one powerful machine. It is India's first 64-head direct-to-fabric printer, designed and manufactured in India and backed by Italian engineering excellence.
Developed through extensive research, advanced engineering, and real-world production expertise, Falcon seamlessly integrates the Feeder, Printer, and Dryer (standalone unit) into a single high-speed production line. Weighing 12 tons, it combines industrial-grade robustness, intelligent automation, advanced ink engineering, precision fabric handling, and high-efficiency drying technology.
With Falcon, ColorJet introduces a true production powerhouse where every component works in perfect synchronization to deliver uninterrupted, high-volume textile printing with exceptional quality and reliability.
| FALCON | |||
|---|---|---|---|
| Model(s) | FA8647 | FA8487 | |
| Printing Technology | Drop-on-demand, Piezo Electric Inkjet | ||
| Type of Print Head | Industrial Grade Kyocera Print Heads | ||
| No. of Print Heads | 64 | 48 | |
| Print Heads | Type | Industrial Grade Jetting Assemblies | |
| Resolution | Up to 2400 dpi | ||
| Cleaning Method | Pressure Purge and Wiping | ||
| Wetting Control | Piezoelectric Actuations | ||
| Inks | Types | Pigment / Reactive / Disperse / Acid | |
| No. of Color | 8 | ||
| Ink Colors | CMYK + 4 | ||
| Bulk | 10 Litre Refillable Tank | ||
| Fabric | Type | Cotton, Viscose, Polyester, Polyamide, Silk, Wool | |
| Max Thickness | 10 mm | ||
| Max Printing Width | 1900 mm | ||
| Max Feed Roll Diameter | 400 mm | ||
| Printing Interface | USB 3.1 | ||
| RIP Software Supported | NeoStampa (ColorJet Edition) | ||
| File Format | JPEG / TIFF / BMP / PDF (RGB / CMYK) | ||
| Power Requirements (Printer Only) | 400V 3Ph, 49.5kW, 50Hz | ||
| Operating Conditions | Temperature: 24°C ± 2 Humidity: RH of 55% ± 5 | ||
| Dimensions (Printer Only) | 5353 × 8585 × 2413 mm (L×W×H) / 12000 kg | ||
| Speed (In Sqm/Hr) | FA8647 | FA8487 | |
| Mode 1 | 600 × 300 1 Pass |
1478 | 1108 |
| Mode 2 | 600 × 600 2 Passes |
953 | 715 |
| Mode 3 | 600 × 900 3 Passes |
631 | 473 |
| DRYER OPTIONS | |||
| Description | Option 1 | Option 2 | |
| Power Req. / Max. Temperature | 112 kW / 170°C | 162 kW / 120°C | |
| Heating Options | Electric + Gas or Electric + Oil | Electric + Gas or Electric + Oil | |
| Dimension (L×W×H) | 8000 × 2500 × 2970 mm | 9120 × 4850 × 3420 mm | |
*Productivity may vary based on the type of inks, design, fabric/computer system specifications and other operating conditions.
Printer Highlights
AUTOMATED INK SYSTEM UNINTERRUPTED HIGH PERFORMANCE PRINTING
9-Tank Ink Line System* simplifies ink management. Ink Circulation Technology reduces nozzle clogging and ensure stable jetting. Bulk Ink Supply with Degassing & Filtration Unit supports bubble-free high-speed production.
SINGLE HEAD & GROUP HEAD PURGING CAPABILITY
Proprietary Automatic Print Head Maintenance System for effortless and cost-effective operation.
AUTOMATIC MAINTENANCE UNIT
Wiper Blade Tilt Control and Height Adjustment for effective belt cleaning.
INTELLIGENT FABRIC FEEDING FOR PERFECT PRINTING
Web Centric Device with Top Entry Feeding ensures wrinkle-free feeding with precise fabric alignment. Guide Angle Feeding Accuracy maintains stable positioning during continuous production. Selvedge Printing brand placement and product traceability possib
