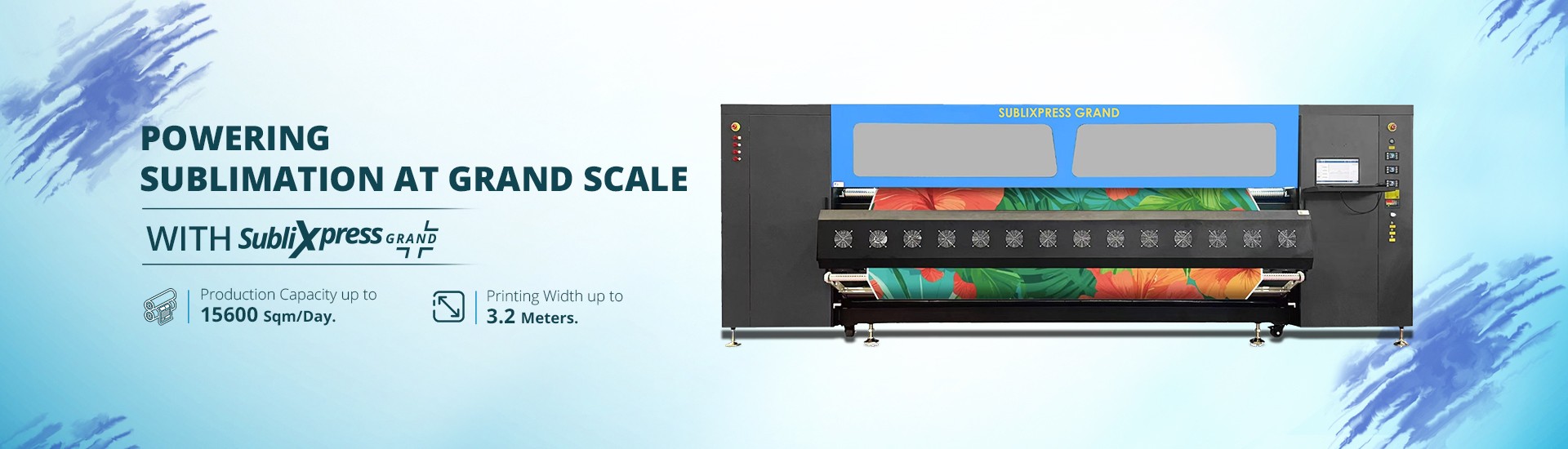

3.2 mtr Ultra Wide High Speed Sublimation Printer
Specification
SUBLIXPRESS GRAND”, the new 3.2-meter wide dye-sublimation printer engineered for high-volume production. Designed for industrial print environments, it delivers fast throughput, consistent color performance, and enhanced reliability for long-run jobs with heavy rolls. The system supports bulk ink delivery and jumbo media feeding for uninterrupted production, making it ideal for export-grade sublimation textile markets.
SubliXpress Grand |
|||||
|
Models |
TC408A |
TC416A |
|||
|---|---|---|---|---|---|
| Printing Technology | PrecisionCore Technology | ||||
| Type of Print head |
Epson i3200 |
||||
| No. of Print Heads |
8 |
16 |
|||
| Print Heads | Type |
Industrial Grade Jetting Assemblies |
|||
| Resolution |
Upto 3600 dpi |
||||
| Cleaning Method |
Pressure Purge and Wiping |
||||
| Wetting Control |
Piezoelectric actuations |
||||
| Bulk Ink System | Types |
Dye Sublimation Aqueous based Inks |
|||
| No. of Color | 4 Color (CMYK) | ||||
| Ink Colors |
CMYK |
||||
| Bulk |
10 litre Refillable tank |
||||
| Media | Max/Printing Width |
Upto 3200mm |
|||
| Feed Roll Diameter |
Jumbo roll (up to 750 mm |
||||
| Media Drying System |
Infrared Heaters |
||||
| Printing Interface |
USB 3.1 |
||||
| Rip Software Supported |
Onyx(ColorJet Edition) |
||||
| File Format |
JPEG/TIFF/BMP/PDF (RGB/CMYK) |
||||
| Power Requirements(Print Engine) |
AC 220 V, 16 A, 50/60 Hz |
||||
| Power Requirements(Dryer) |
AC 220 V, 82 A, 50/60 Hz |
||||
| Dimensions (Printer Only) |
2770 x 5020 x 1750 mm (LxWxH) / 1100 Kg |
||||
| Packaging Dimensions / Net Weight |
2870 x 5120 x 1850 mm (LxWxH) / 1200 Kg |
||||
| Operating Conditions |
Temperature: 24 °C ± 4 Humidity: RH of 55% ± 5 |
||||
| Speed(In Sq.Meter/Hr) |
Print DPI |
Passes |
TC408A |
TC416A |
|
| Mode 1 |
720 x 600 |
1 |
403 |
736 |
|
| Mode 2 |
720x1200 |
2 |
235 |
428 |
|
Mode 1 can be recommended for Light designs (Floral/Geometric). For Dark designs (Blotch/Solid), Mode 2 is recommended.*
Printer Highlights
PRECISIONCORE PRINT HEADS
Epson PrecisionCore heads with 3.5pl droplets for sharp output, smooth gradients, and longer nozzle life.
HEAVY-DUTY CHASSIS
Reinforced steel body reduces vibration and maintains alignment for long industrial runs.
ADVANCED CARRIAGE DRIVE
Linear motor with magnetic grid for high precision, stable printing, and low noise.
INDUSTRIAL MEDIA FEED & TAKE-UP
Jumbo roll support with stable tension and air-expansion shafts for smooth, uninterrupted production and low waste.
HIGH-ACCURACY MEDIA HANDLING
Vacuum platen keeps media flat, ensuring accurate jetting and higher throughput in continuous operations.
