Direct To Fabric Digital Textile Printer
Specification

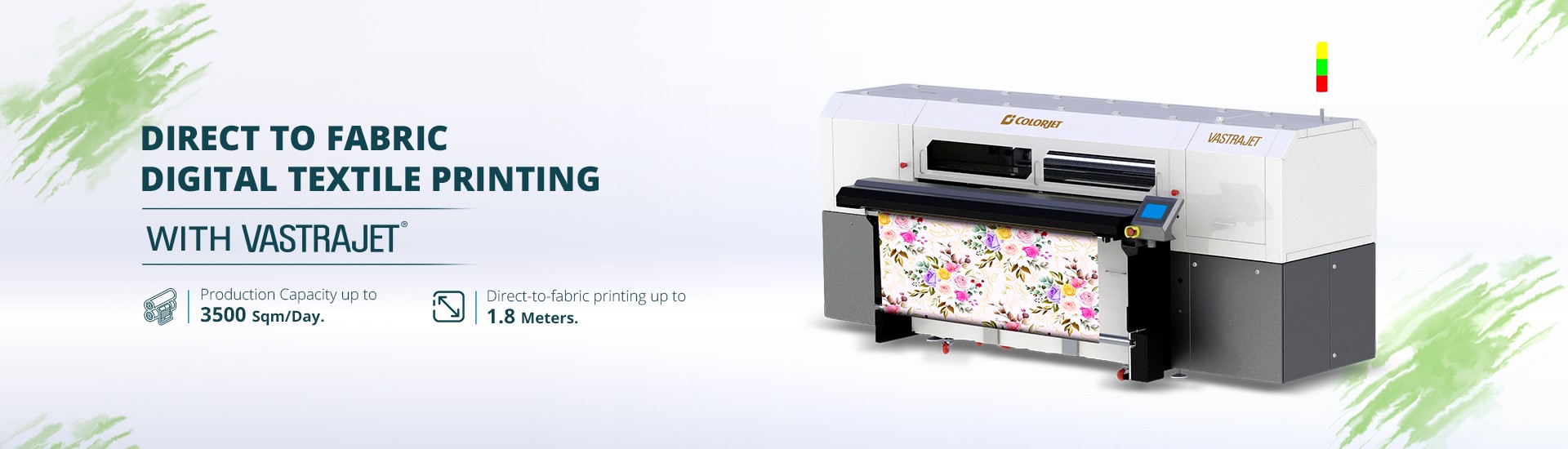

Direct to Fabric Digital Textile printer
VASTRAJET is a high speed Direct to Fabric Digital Textile printer designed to print directly on natural and synthetic fabric. Built on 3E design philosophy – Economic, Efficient and Ecological, VASTRAJET comes with maximum capabilities and applications for maximum business.
This Direct to fabric printer is a leap ahead in its technology, with high precision and quality output making it the most selling Digital Textile Printer from the house of ColorJet.
VASTRAJET |
||||||||
|
CONFIGURATION |
C4812 |
C8812 |
C4824 |
C8824 |
C8164 |
|||
|---|---|---|---|---|---|---|---|---|
| Printing Technology |
Drop-on-demand, Piezo Electric Inkjet |
|||||||
| No. of Print Heads |
8 |
8 |
8 |
8 |
16 |
|||
| Print Head | Type |
Industrial Grade Jetting Assemblies |
||||||
| Resolution |
Maximum Up to 1440 dpi |
|||||||
| Height Adjustment |
Upto 5mm |
|||||||
| CleaningMethod |
Pressure Purge and Wiping |
|||||||
| Wetting Control |
Piezoelectric Actuations |
|||||||
| Ink | Types |
Reactive/Disperse/Pigment/Acid |
||||||
| No of colors |
4 |
8 |
4 |
8 |
8 |
|||
| Supply |
3.9 Ltr, bulk ink supply system with inline degassing |
|||||||
| Fabric | Type |
Cotton,Viscose,Polyester,Polyamide,Silk,Wool |
||||||
| Max.Thickness |
Upto 5mm |
|||||||
| Max.Width |
1800 mm |
|||||||
| Roll Diameter |
Upto 450mm |
|||||||
| Fabric Drying System |
Infrared heaters |
|||||||
| Operating Interface |
Touch screen |
|||||||
| Printing Interface |
High speed USB 2.0 |
|||||||
| RIP Software Supported |
RIP Master or ErgoSoft ( Colorjet Edition) |
|||||||
| File Format |
JPEG, TIFF, BMP/PDF (RGB, CMYK) |
|||||||
| Power Supply |
220 V, 35 A Single/Three phase load distribution, 50Hz, |
|||||||
| OperatingCondition |
Temperature 20-28C, Humidity 60-70% RH ( Non-Condensing) |
|||||||
| Outer Dimension/Weight |
3950 mm x 1500 mm x 1600 mm (LxWxH) 1200kg Approx. |
|||||||
|
Speed (In Sq. Meter/Hrs) |
Print DPI |
Passes |
C4812 |
C8812 |
C4824 |
C8824 |
C8164 |
|
|
Mode 1 |
|
2 |
116 |
68 |
NA |
NA |
NA |
|
|
Mode 2 |
|
3 |
90 |
53 |
NA |
NA |
NA |
|
|
Mode 3 |
360 x 720 |
4 |
63 |
37 |
NA |
NA |
NA |
|
|
Mode 4 |
540 x 720 |
2 |
NA |
NA |
161 |
87 |
145 |
|
|
Mode 5 |
540 x 1080 |
3 |
NA |
NA |
98 |
59 |
100 |
|
|
Mode 6 |
540 x 1440 |
4 |
NA |
NA |
75 |
43 |
76 |
|
|
Mode 7 |
720 x 720 |
4 |
NA |
NA |
65 |
35 |
58 |
|
|
Mode 8 |
720 x 1080 |
6 |
NA |
NA |
38 |
23 |
39 |
|
|
Mode 9 |
720 x 1440 |
8 |
NA |
NA |
31 |
18 |
32 |
|
Printer Highlights
PRINT SYSTEM
With 8/16 industrial-grade jetting assemblies for long service life Proprietary AVC technology for consistent print quality matching samples to production across VastraJet lines. Supports binary and variable drop printing to produce sharp images, vivid colours, large gamut and gradations effects Capping station and piezoelectric actuations to keep ink nozzles always ready & protected when idle. Inbuilt humidifier to keep print head protected & ready for best performance.
FABRIC FEED AND TAKE-UP SYSTEM
Fabric unwinding regulated to keep constant tension from start to finish Adhesive conveyor belt ensures fabric flatness and in place for accurate printing and prevent creases in fabric while printing. Winding with torque motor for continual unattended printing of fabric rolls
FABRIC HANDLING TREATMENT
Equipped with water jets and brush roller to wash excess ink and lint Super absorbent roller to ensure removal of residual moisture Belt dryer ensures that completely dry belt surface is available for fresh fabric feed
INFRARED DRYER
Compact inbuilt infrared dryer for quick drying of printed ink on fabric Uses power efficient radiation for minimal heat dissipation into surroundings
