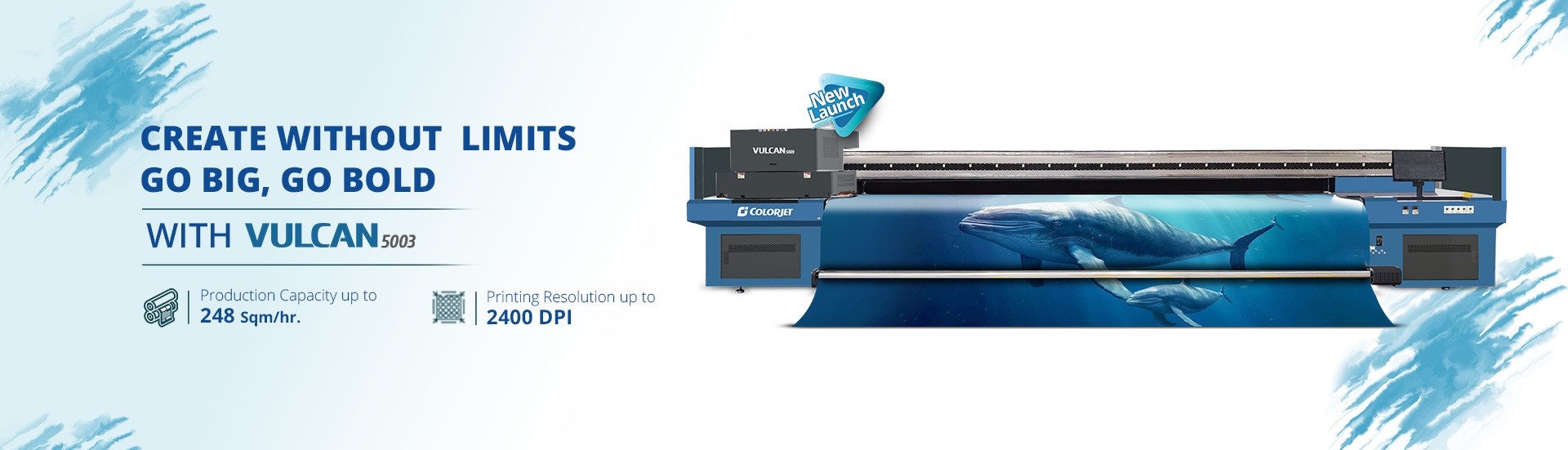

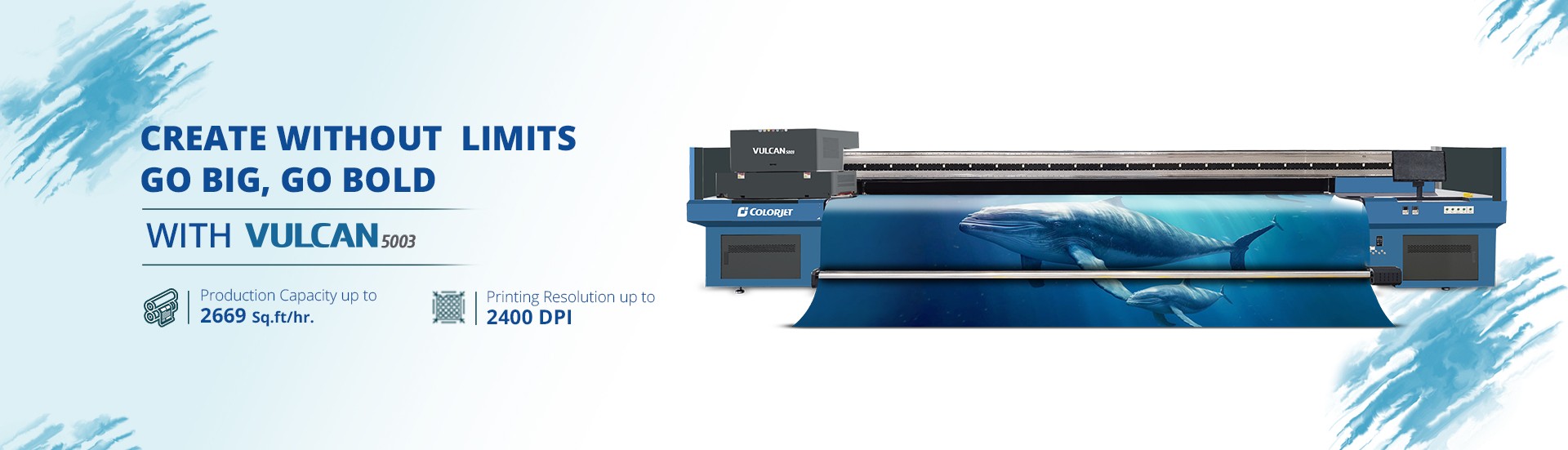

5 mtr Conveyor Belt UV Large Scale Roll-to-Roll Printer
Specification
Vulcan UV 5m Conveyor belt RTR offers unmatched width, speed, and quality for large-scale printing projects, enabling businesses to meet high-volume demands with vibrant and durable prints. With UV curing technology, it ensures instant drying, reducing turnaround times and delivering long-lasting results, even on the most challenging substrates.
Vulcan 5003 |
||||||||
| Model |
VA5003Y |
VA5003R6 |
||||||
|---|---|---|---|---|---|---|---|---|
| Printing Technology |
Drop-on-demand, Piezo Electric Inkjet |
|||||||
| Print Heads |
Kyocera & Ricoh G6 |
|||||||
| No. of Print Heads | 2 to 15 (3.5 PL) |
2 to 18 (5 PL) |
||||||
| Media | Width |
5200 mm |
||||||
| Thickness |
Maximum 50 mm |
|||||||
| Handling |
Conveyor |
|||||||
| Printing Size |
5200 mm |
|||||||
| Inks | Types |
UV Inks (Medium / Flexible) |
||||||
| System | Bulk Ink Refillable System | |||||||
| Color |
CMYK/LC/LM+W |
CMYK/LC/LM+W+V |
||||||
| Printing Resolution (dots per inch) |
Maximum 2400 DPI |
Upto 1200 DPI | ||||||
| Distance Accuracy |
Error of less than ±0.3 % of distance travelled, or ±0.3 mm, which is greater |
|||||||
| Connectivity / Interface |
High speed USB 2.0 |
|||||||
| Power Requirements |
AC 220 V ± 10%, 30 A, 50/60 Hz |
|||||||
| Dimensions (Printer only) |
7650 mm x 1576 mm x 1465 mm (LxWxH) |
|||||||
| Dimensions (With Packing) |
7650 mm x 1576 mm x 1465 mm (LxWxH) |
|||||||
| RIP software |
Onyx (Colorjet Edition) |
|||||||
| Weight |
4200 Kgs |
|||||||
| Environmental | Power ON |
Temperature: 18 to 28℃ Humidity: 35 to 80%RH (non-condensing) |
||||||
| Power OFF |
Temperature: 5 to 40℃ Humidity: 20 to 80%RH (non-condensing) |
|||||||
|
Printing Speed (In Sq. Meter / Hrs) |
||||||||
|
KJ4A |
Gen 6 |
|||||||
| Mode |
Print DPI |
Passes |
6 Heads |
12 Heads |
||||
|
3 Row |
6 Row |
|||||||
| Mode 1 |
726 x 1200 |
4 |
197 |
- |
||||
| Mode 2 |
726 x 1800 |
6 |
130 |
- |
||||
| Mode 3 |
726 x 2400 |
8 |
100 |
- |
||||
| Mode 1 |
635 x 600 |
4 |
- |
248 |
||||
| Mode 2 |
635 x 900 |
6 |
- |
184 |
||||
| Mode 3 |
635 x 1200 |
8 |
- |
135 |
||||
Printer Highlights
Pedal Switch (Optional)
2 Press Rollers in the Back
3 Rows Kyocera
6 Rows Ricoh Gen6
Anti-static Loniser
Automatic Head Height Detector
Backlit LED Panel
Linear Motor
