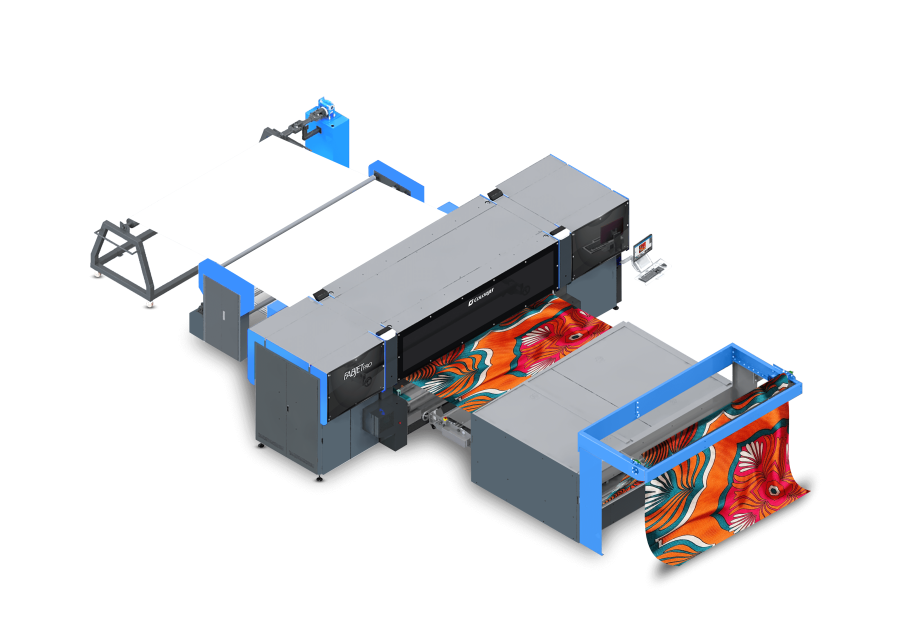

Introducing the FabJet Pro, our latest leap in digital textile printing innovation. With a remarkable production capacity of up to 13,000 square meters per day, the FabJet Pro redefines speed, quality, and efficiency in the industry. Designed for ultra-wide format direct-to-fabric printing up to 3.2 meters.
Equipped with 32 Kyocera and 48 Konica Minolta Print Heads with a sticky belt system, the FabJet Pro ensures unparalleled precision and clarity in every print. This state-of-the-art machine is engineered to meet the highest demands of productivity while maintaining exceptional quality, making it the perfect choice for forward-thinking textile manufacturers seeking to elevate their production capabilities.
FABJET PRO |
|||||||
CONFIGURATION |
PB8326 |
PB8489 |
PB8329 |
||||
Printing Technology | Drop-on-demand, Piezo Electric Inkjet |
||||||
No. of Print Heads | 32 KY
|
48 KM |
32 KM |
||||
Print Heads | Type | Industrial Grade Jetting Assemblies |
|||||
Resolution | 600 DPI |
Upto 1400 DPI |
Upto 1400 DPI |
||||
Height Adjustment | upto 30 mm |
||||||
Cleaning Method | Pressure Purge and Wiping |
||||||
Wetting Control | Piezoelectric Actuations |
||||||
Inks | Types | Reactive |
Pigment/Reactive/Disperse |
Pigment/Reactive/Disperse |
|||
No of colors | 8 |
9 |
10 |
12 |
|||
Supply | 2.5 Ltr, Bulk ink Supply System with inline degassing |
||||||
Fabric | Types | Cotton,Viscose,Polyester,Polyamide,Silk,Wool |
|||||
Max.Thickness | Upto 5mm |
||||||
Max.Width | 3200mm |
||||||
Roll Width | 400mm |
||||||
Fabric Drying System | Electric Heaters |
||||||
Operating Interface | Touch screen |
||||||
Printing Interface | High Speed USB |
||||||
RIP Software Supported | NeoStampa (Colorjet Editions) |
||||||
File Format | JPEG, TIFF, BMP/PDF (RGB, CMYK) |
||||||
Power Supply | 9.5 KW / 3 Φ - 15 A |
||||||
Operating Conditions | Temperature: 24°C ± 4°C Humidity: 60% ± 10% RH |
||||||
Printer Dimension / Net Weight | 2835x6572x2041mm (LxWxH) / 6500 Kg approx. |
||||||
Dryer Dimension / Net Weight | 2550 x 2050 x 1255 mm (LxWxH) / 700 Kg. Approx. /48KW |
||||||
Feeder Dimension / Net Weight | 1200x3907x1398mm (LxWxH) / 950 Kg approx. |
||||||
Speed (In Sq. Meter/Hrs) | Print DPI |
Passes |
PB8326 |
PB8489 |
PB8329 |
||
Mode 1 |
|
2 |
654 |
- |
- |
||
Mode 2 |
|
3 |
446 |
- |
- |
||
Mode 3 | 508 x 2400 |
4 |
318 |
- |
- |
||
Mode 1 | 360 x 720 |
2 |
- |
649 |
434 |
||
Mode 2 | 360 x 1080 |
3 |
- |
435 |
292 |
||
Mode 3 | 360 x 1440 |
4 |
- |
312 |
208 |
