PRINT FLAGS DIGITALLY WITH SOFTJET PLUS

OVERVIEW

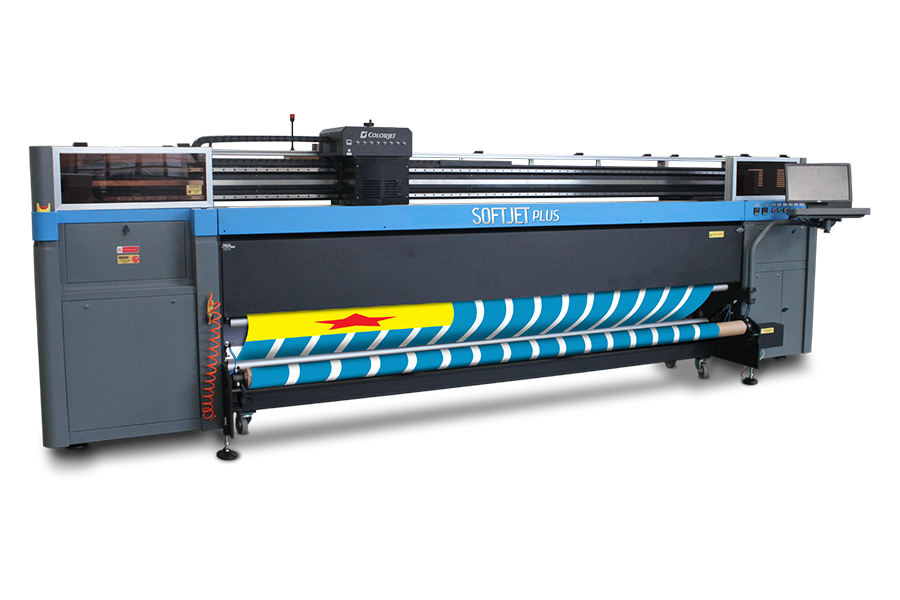

SOFTJET PLUS: PRINT FLAGS DIGITALLY WITH SOFTJET PLUS

SOFTJET PLUS, the 2.5mtrs entry level printer is the perfect solution for minimum investment and maximum profitability. A soft signage printer, Softjet Plus is an ideal machine for flag printing. It is not just environment-friendly but also extremely friendly on pocket. Flag off success with Softjet Plus.

FEATURES

SOFTJET PLUS FEATURES TO EXPAND YOUR BUSINESS

SPECIALLY DEVELOPED AIVC

Proprietory AIVC technology for consistent print performance by maintaining constant Jetting conditions even in varying environmental conditions

FEED SYSTEM

Automated feed and take up system synchronised with tension bars for unattended long printruns on various types of fabric.

MEDIA TENSION CONTROL SYSTEM

Pneumatics control-based tension-bar on media feed and take up, to ensure consistent tension on fabric. Automatically adjusts, based on type of fabric being used.

WIPERS

Automatic wiping system which wipes excess ink and dust from the print head surface.

INDUSTRIAL GRADE JETTING ASSEMBLY

Superior print-head durability ensures longer lifespan.
Consistent print quality across the entire machine lifespan.
Consistent performance even with varying viscosity.
Low maintainance, easy to handle, less operational wastage.

INFLATABLE RODS

Saves media loading time and prevents media skewing
Ensures uninterrupted supply of media even if the core is deformed.

RIP

Equipped with advance color management engine and color processing tools.
Faster processing of files saves time, increases productivity.
User-friendly and easy to use color controls to manage colors.
Advanced dither patterns for photo-realistic output.
Fully customized printer setting for enhanced print results.
Smoother gradations, vibrant colors for superior print quality.
Inbuilt ICC profiles for various media and print modes.

INK

Non-polluting aqueous based pigment inks
Wider color gamut of inks for vibrant color prints
High density colors for higher coverage per liter.
Fast drying.
Optimized for best performance and longevity of print heads.

VARIABLE DROP TECHNOLOGY

Uses 3 dot types to produce smoother gradations, vivid colors and sharp images; maintains details in mid tone areas

HEAD HEIGHT ADJUSTMENT

Helps accommodate upto 10 mm thickness; can be changed during printing itself, if needed

CAPPING STATION

Prevents inks from drying inside the print head when printer is not in use for long time; also protects head from dust which might cause damage to print head

SPECIFICATION

SOFTJET PLUS
Models				M4412
Printing Technology				Drop-on-demand, Piezo electric inkjet
Print Heads				Industrial Grade Jetting Assemblies
No. of Print Heads				4
Fabrics			Width	2600 mm
			Thickness	Maximum 10 mm with liner
			Roll Outer Diameter	Maximum 300mm
			Roll Weight	Maximum 90 kgs
			Core Diameter	76.2mm
			Types	Polyster,Satin, Canvas & Blends
Printing Width				Maximum 2500mm
Inks			Types	Direct Disperse inks
			Color	4 Colors
Printing Resolution (dots per inch)				Maximum 1440dpi
Distance Accuracy				Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater
Media Heating System				Roller Heater ans IR Print Dryer, setting range for the preset temprature: 30 to 60℃. Dryer setting range for the preset temperature : 30 to 60℃
Connectivity				High speed USB
Power Requirements				AC 220 V ±10%, 20 A, 50/60 Hz
Dimensions ( Printer only)				4500mm x 1150mm x 1640mm (LxWxH)
RIP software				PhotoPrint (Colorjet Edition)
Weight (approx. with stand)				1650 Kgs
Environmental		Power ON		Temperature: 18 to 28℃ Humidity: 35 to 80%RH (non-condensing)
		Power OFF		Temperature: 5 to 40℃ Humidity: 20 to 80%RH (non-condensing)
Speed(In Sq. Meter/Hr)	Print DPI	Passes		Speed (In Sq. mtr/hr)	Speed (In Sq. feet/hr)
Mode 1	720x540	3		46	495
Mode 2	720x720	4		30	323
Mode 3	720x1080	6		23	248
Mode 4	720x1440	8		15	162
