OVERVIEW

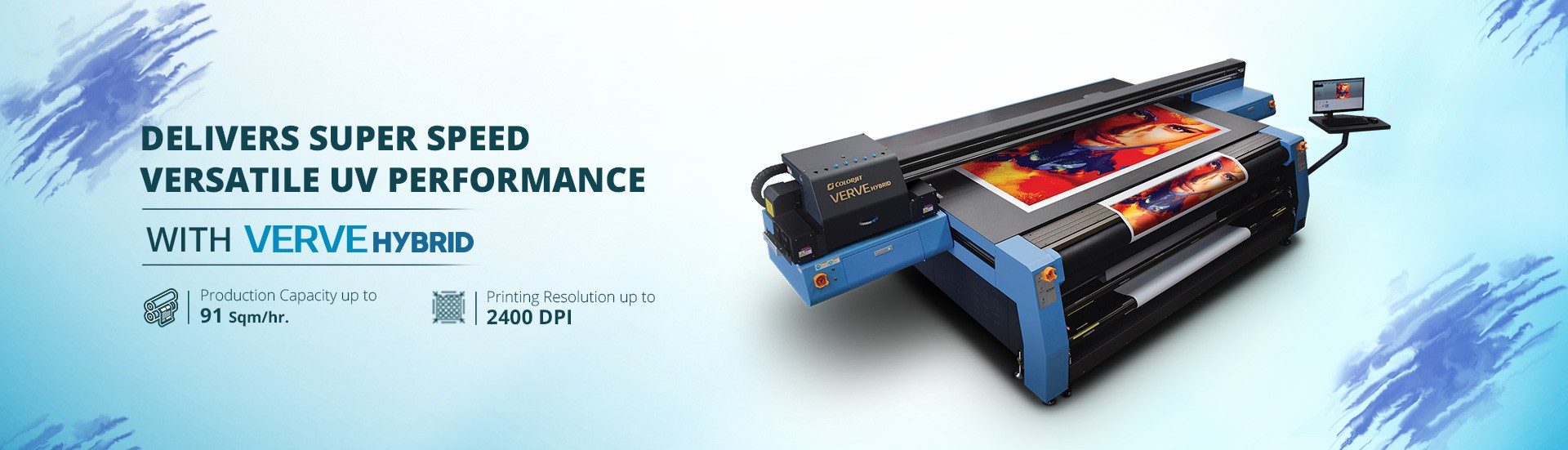

VERVE HYBRID : DELIVERS SUPERSPEED VERSATILE UV PERFORMANCE AT UPTO 48 SQM/HR

---

VERVE HYBRID is a 3.2 M UV Flatbed Roll to Roll Hybrid printer that delivers fast and versatile UV performance. This UV printer enables super speed production with speed up to 63 square meters per hour. This UV hybrid printer from the house of ColorJet is engineered for high-endurance work and low running costs to deliver high-quality print for a long period of time. This versatile printer enlarges capabilities and print business possibilities towards high growth and a higher return on investment (ROI). The UV hybrid roll to roll printer can print on substrates like ACP, foam, board, flute board, glass, ceramic tiles, wood, and on a wide range of vinyl and flexible media. This UV digital printing machine has a large flatbed of 3.2 m x 2.0 m and a 3.2 m wide roll that makes it highly productive and versatile. This digital UV hybrid printer offers a variety of applications to help your print business grow.

FEATURES

FEATURES : COLORJET VERVE HYBRID BUILD YOUR PRINT BUSINESS POSSIBILITIES

---

VERVE HYBRID is abundant in features for higher productivity. This UV Flatbed Roll to roll printer has proprietary AIVC jetting technology and variable drop technology for accurate and reliable high-speed printing. This UV hybrid roll to roll printer offers flexibility that caters to a large range of printable media. It has a solid build quality and requires low maintenance. VERVE HYBRID, the digital UV hybrid printer, has an intelligent media thickness detection system and an anti-crash sensor. This UV printer has advanced RIP software for faster processing and better colour management. It has fully customized and user friendly software interface and printer settings to ensure ease of operation. Industrial grade jetting assembly of print heads makes sure of consistent print quality throughout the life of the print head. The system of this flatbed printer is designed to use white ink as an additional colour. This UV flatbed printer has a powerful UV lamp power that enables better drying control. The vacuum system of this UV digital printing machine can be adjusted in four zones. There are specially formulated inks with wider colour gamut and higher density.

• Precisely engineered using 3D CNC Machinery
• Intelligent Media Thickness System
• Anti-Crash Sensor
• Advanced RIP for faster processing & better color management
• Fully customised printer settings for enhanced print result.
• Industrial grade jetting assembly.
• Consistent print quality through the life of printhead
• System designed to use white ink ad additional color
• Adjustment UV lamp power enables better drying control.
• Vacuum system can be adjusted in four zones.
• Specially formulated inks with wider color gamut & higher density.

SPECIFICATION

VERVE HYBRID works on the technology of drop-on-demand, piezoelectric inkjet that prints up to the high quality of 960x2400 DPI 4 colours plus white, 4 print heads, and 12 passes. With maximum media thickness of 100 mm, this UV flatbed printer has a Dual UV LED lamp curing system. The bulk ink refillable system of this UV hybrid roll to roll printer uses UV LED curable ink. This compact flatbed printer runs ColorJet edition of RIP software, Onyx. VERVE HYBRID is the ultimate choice for service providers of the print industry for efficient production and low operating cost.

VERVE HYBRID 3220
Models			Y3220Y		Y3220R
Print Technology			Drop-on-demand, piezo electric inkjet
Print Head Type			Industrial Grade Jetting assemblies
No. of Print Heads			2 to 8 (3.5 PL) / 2 to 7 (7 PL)
Media		Size	3.2m x 2.0m Bed / 3.2m x Unlimited Roll
		Thickness	Maximum 100mm
		Handling	Suction & Blower
Printing size			3.2m x 2.0m / 3.2m x Unlimited Roll
Curing System			Dual UV LED Lamps
Ink		Type	UV LED Curable Ink
		System	Bulk Ink Refillable System
		Colors	CMYK + W (LC LM optional)
Printing Resolution (dots per inch)			2400 DPI
Distance Accuracy			Error of less than ± 0.3 % of distance travelled, or ± 0.3 mm, whichever is greater
Connectivity / Interface			USB 3.1
Power Requirments			AC 220 V, 30A, 50/60 Hz
Dimensions (Printer Only) (LXWXH)			5600 x 3350 x 1550 mm
Dimensions (With Packing) (LXWXH)			5780 x 2280 x 1940 mm , 4180 x 880 x 1340 mm
RIP Software			Onyx (ColorJet Edition)
Weight			N.W. 3360 Kg, G.W. 3900 Kg
Environmental		Power ON	Temperature 20 to 28o C, Humidity 40 to 60%RH (Non-condensing)
		Power OFF	Temperature 20 to 28o C, Humidity 40 to 60%RH (Non-condensing)
			Flatbed / Roll to Roll Print Speed (In. Sq. Meter / Hrs.)
Mode	Print DPI	Passes	2 Head	4 Head	2 Head	4 Head
Mode 1	604 x 600	4	48	75	-	-
Mode 2	604 x 900	6	33	54	-	-
Mode 3	604 x 1200	8	25	43	-	-
Mode 1	600x600	4	-	-	25	48
Mode 2	600x900	6	-	-	17	33
Mode 3	600x1200	8	-	-	13	25
