OVERVIEW

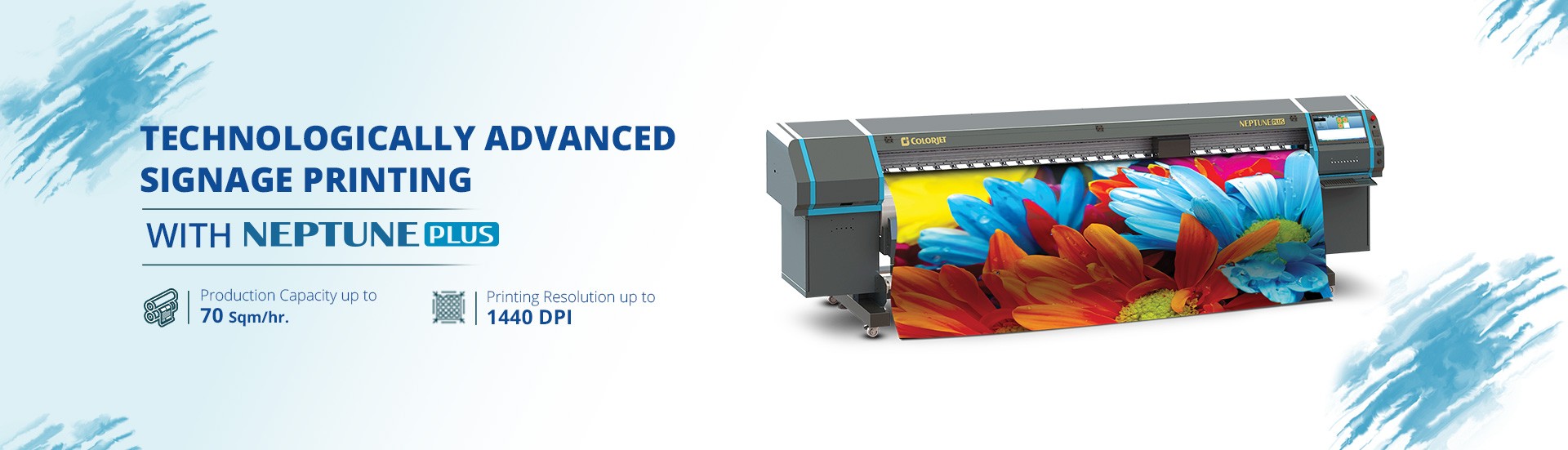

NEPTUNE PLUS : 3.2 Mtr ROLL TO ROLL SOLVENT PRINTER
Switch to advanced signage printing with ColorJet Neptune Plus, a 3.2 m roll-to-roll solvent printer that combines high-quality and high production speed of up to 753 sq. feet per hour. With the introduction of a technologically advanced and innovative signage printer, Neptune Plus, ColorJet is changing the landscape of the signage printing industry. This newly launched Neptune Plus is ColorJet's signature flagship product. This flex printing machine has a well-renowned and robust body combined with improvised and advanced features. This glow sign hoarding printer offers very high value for money and will be an unending success story for all its users. Its intelligent design makes it the most stable and reliable machine in its segment. The one-way vision printer provides outstanding performance at entry-level costs. Neptune Plus is the finest solution for entry-level customers looking to print outdoor signage and advertising applications. The advanced print technology of Neptune Plus offers greater versatility and yields efficient and economical output.
FEATURES
Neptune Plus comes with a fresh look! The latest aesthetic enhancements in the body structure make it a printer with a combination of robust design and advanced features. Neptune Plus has an in-built LED Monitor; this newly added Inbuilt LED screen not only minimizes the effort for an extra attachment but also enhances the compact look & sleek design. Another enhancement is extended Bed Space with Conductive Heater. The Advanced Conductive heating with optimum media contact area provides an increase in outdoor life and avoids heat loss thus a negligible increase in room temperature. The advanced feed system or the Media Pulling system is a special roller provided to ensure a smooth opening of Media roll and avoid sticking, falling, and wrapping of media in opposite direction. Media roll can be inserted into the upper/lower Roller rod or can be supported on the 2 upper Rollers in case of less space availability.
AESTHETIC ENHANCEMENTS Neptune Plus comes with a fresh look! The latest aesthetic enhancements in the body structure makes it a printer with combination of Robust design and sleek features.
INBUILT LED MONITOR This newly added Inbuilt LED screen not only minimizes effort for an extra attachment but also enhances the compact look & sleek design.
EXTENDED BED SPACE WITH CONDUCTIVE HEATER Advanced Conductive heating with optimum media contact area provides an increase in outdoor life and avoids heat loss thus negligible increase in room temperature.
ADVANCE FEED SYSTEM Media Pulling system: A special roller provided to ensure smooth opening of Media roll and avoid sticking, falling and wrapping of media in opposite direction. Media roll can be inserted into the upper/lower Roller rod or can be supported on the 2 upper Rollers incase of Less space availability
SPECIFICATION
Neptune Plus works on drop-on-demand, piezoelectric inkjet technology that prints up to the high quality of 1440 DPI with the option of up to 8 print heads and 4 Colors (CMYK), that caters to a wide range of print applications. Neptune Plus comes with a maximum printing width of 3200 mm and uses solvent and mild solvent inks. This flex printing machine offers high accuracy with an error of less than +/- 0.3 % of distance traveled, or +/- 0.3 mm, whichever is greater.
NEPTUNE PLUS |
|||||
| Model | I4442 |
I8442 |
|||
| Printing Technology | Drop-on-demand, Piezo electric inkjet |
||||
| Print Heads | Industrial Grade Jetting Assemblies |
||||
| No. of Heads | 4 |
8 |
|||
| Media | Width | 3300 mm (129 in.) |
|||
| Thickness | Maximum 3.0 mm (120 mil )with liner (flexible) |
||||
| Roll Outer Diameter | Maximum 300mm (12inch), 50.8 (2 in) |
||||
| Roll Weight | Maximum 90 kgs |
||||
| Core Diameter | 76.2mm (3 inch) |
||||
| Types | SAV, PAV Banner, Backlite Film, Window Film, Fabric (Solvent Base) |
||||
| Printing Width | Maximum 3200mm (126 inch.) |
||||
| Inks | Types | Solvent/Mild Solvent inks |
|||
| Color | 4 Colors
(CMYK) |
||||
| Printing Resolution (dots per inch) | Maximum up to 1440 dpi |
||||
| Distance Accuracy | Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater |
||||
| Media Heating System | Pre Heater and Post Heater, setting range for the preset temprature: 30 to 60℃. Dryer setting range for the preset temperature : 30 to 60℃ |
||||
| Connectivity | High speed USB |
||||
| Power Requirements | AC 220 V ±10%, 20 A, 50/60 Hz |
||||
| Dimension | 4510mm x 1022mm x 1355mm (LxWxH) |
||||
| Ink Compatibility | Solvent Inks |
||||
| Weight (approx. with stand) | 470 Kgs |
||||
| Environmental | Power ON | Temperature: 18 to 28℃ Humidity: 35 to 80%RH (non-condensing) |
|||
| Power OFF | Temperature: 5 to 40℃ Humidity: 20 to 80%RH (non-condensing) |
||||
| Speed | Print DPI |
Passes |
A4442 |
A8442 |
|
| Mode1 | 180x720 |
2 |
42 sqm/hr (452 sq. ft/hr) |
70 sqm/hr (753 sq. ft/hr)
|
|
| Mode 2 | 240x720 |
3 |
28 sqm/hr (300 sq. ft/hr) |
55 sqm/hr (592 sq. ft/hr) |
|
| Mode 3 | 360x720 |
4 |
24 sqm/hr (259 sq. ft/hr) |
40 sqm/hr (430 sq. ft/hr)
|
|
APPLICATIONS
Neptune Plus, the glow sign hoarding printer, is indeed the finest solution for customers of outdoor advertising applications, who need quality prints at a very high speed. Neptune Plus is an ideal digital signage printing machine for sign shops and commercial printers who are looking to upgrade the quality and offer greater versatility and speed at an optimal price. It works as a great solution for corporate in-house production of exhibition graphics, flex, glow sign hoarding, one-way vision print, posters, hoardings, signage, billboards, drop-down banners, floor standees, backlit hoardings, vehicle wraps, backlit display, outdoor banners, and many more.
Floor Standees
Backlit Display
Vehicle Wraps
Hoardings
Outdoor Banner
Drop down Banners /Backlit Hoardings
