TRUE FLATBED UV PRINTER
Specification

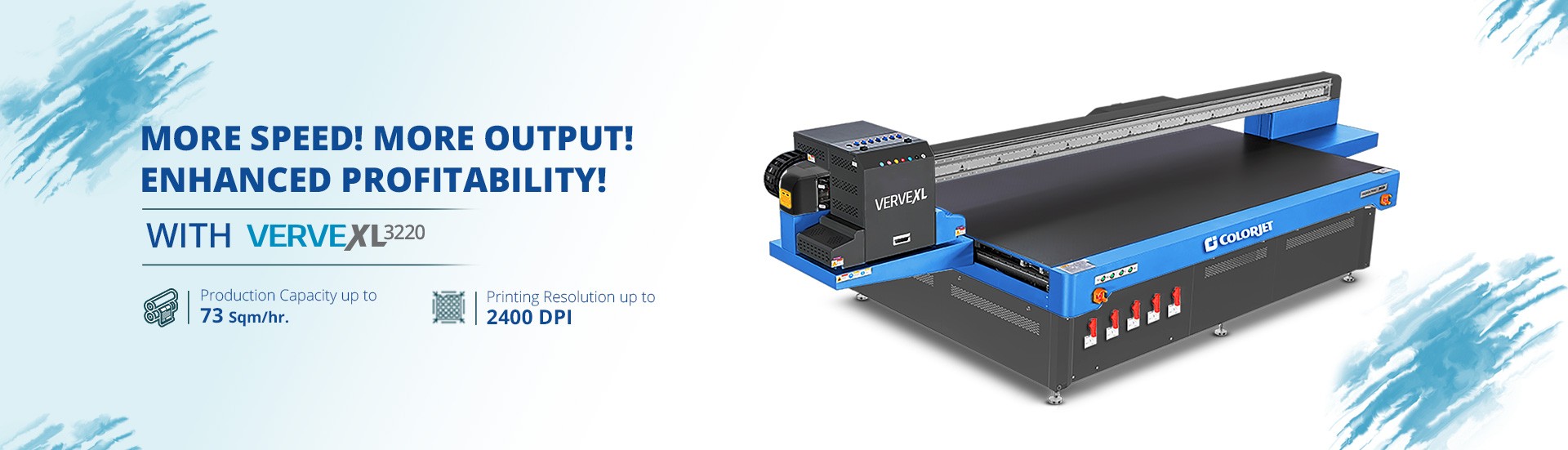

Verve XL 3220 is tech-enabled with an independent four-zone vacuum adsorption platform to adjust to soft and rigid media easily. Optimized to print on size 3.2x2 m and an adjustable head height of 200 mm (optional feature). Verve XL 3220 is an ideal printer for high speed & high-quality printing.
ADDITIONAL FEATURES
- High Precision
- Position Pin and table with the scale rule
- Multiple Color Layout
- High energy LED
- Linear motor drive
- Y axis is dual motor + Ball Screw movement control
- Two vacuum pump
- Horizontal Bed
VERVE XL 3220 |
||||
| Models |
KZ3220Y |
KZ3220R5 |
KZ3220R6 |
|
|---|---|---|---|---|
| Print Technology |
Drop-on-demand, Piezo Electric Inkjet |
|||
| Head Type |
Kyocera, Ricoh G5 & G6 |
|||
| No. of Print Heads |
2 to 6(3.5 PL) |
2 to 9 (7 PL) |
2 to 9 (5PL) |
|
| Ink |
VERJET – based on the printheads and support policy |
|||
| Media | ||||
| Thickness |
1-100mm |
|||
| Handling |
Suction & Blower |
|||
| Printing size |
3200×2000mm |
|||
| Curing System |
UV LED ( water cooling) |
|||
| Ink | Type |
UV Ink |
||
| System |
Bulk Ink Refillable System |
|||
| Colors |
CMYK/LC/LM+Wx |
CMYK/LC/LM+W+V |
CMYK/LC/LM+W+V |
|
| Distance Accuracy |
Error of less than ± 0.3 % of distance travelled, or ± 0.3 mm, whichever is greater |
|||
| Connectivity / Interface |
USB 2.0 |
USB 2.0 |
USB 2.0 |
|
| Power Requirments |
AC 220 V, 30A, 50/60 Hz |
|||
| Dimensions |
5060x2780x1350mm |
|||
| RIP Software |
ONYX(ColorJet Edition ) |
|||
| Weight |
2360 KG |
|||
| Print Head control |
Temperature and Voltage control by Waveform Operation |
|||
| Environmental |
Temperature 20 to 28o C, Humidity 40 to 60% |
|||
|
Print Speed (In Sq. Meter / Hrs) |
|||||||||
| Mode |
KZ3220Y |
KZ3220R5 |
KZ3220R6 |
||||||
|---|---|---|---|---|---|---|---|---|---|
|
Print DPI |
Passes |
1 ROW |
1 ROW |
2 ROW |
3 ROW |
1 ROW |
2 ROW |
3 ROW |
|
| Mode 1 |
726×1200 |
4 |
39 |
- |
- |
- |
- |
- |
- |
| Mode 2 |
726×1800 |
6 |
27 |
- |
- |
- |
- |
- |
- |
| Mode 3 |
726×2400 |
8 |
19 |
- |
- |
- |
- |
- |
- |
| Mode 4 |
635 x 600 |
4 |
- |
- |
- |
- |
32 |
53 |
73 |
| Mode 5 |
635 x 900 |
6 |
- |
17 |
31 |
43 |
21 |
39 |
51 |
| Mode 6 |
635 x 1200 |
8 |
- |
13 |
22 |
30 |
16 |
29 |
38 |
Printer Highlights
Equipped with high-capacity air tanks to stabilize negative pressure.
Independent 4-zone Air Suction driven by two independent vacuum pumps.
Comes with Anti-Crash and continue print system.
Can print heavy substrates upto 100kg weight
Print upto 100mm thick substrates (can be raised upto 200mm with an optional adaptor)
Automatic Head Height Detector
Equipped with Japanese noise-free guide rail
Comes with 3 rows G5/G6 head plate
Drawer-type UV lamp cassette makes it easy to replace the lamps when needed
White ink Recirculation System comes with an automatic stirring and low-level alarm
