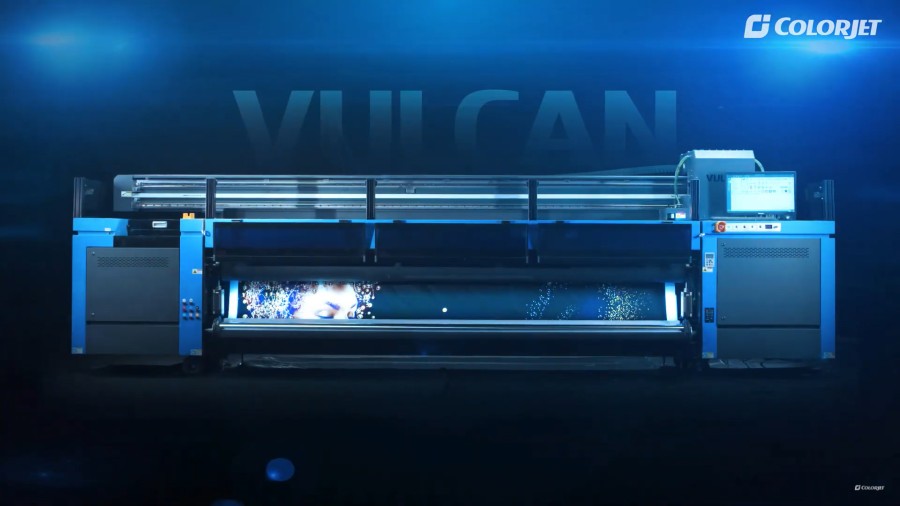

HIGH SPEED 3.2M ROLL-TO-ROLL PRINTER UV LED INKJET PRINTER

OVERVIEW

It’s time to print smarter and change the game of UV printing with ColorJet’s VULCAN, a high speed 3.2 m roll-to-roll UV LED Inkjet printer. Experience unprecedented print speed, high-quality, and lucrative total cost of ownership with our UV roll to roll printer VULCAN. It offers a variety of applications to help your print business grow with its versatile media handling capabilities that support a variety of flexible media, like backlit fabric, ceiling film, vinyl, advertising banner, PET, wallpaper, etc. It is an industrial UV printing machine that has a robust beam with high precision mechanical accuracy. This ensures high quality back to back printing with accurate dot placement solution and low ink consumption making VULCAN, a perfect solution for indoor and outdoor applications. Embedded with the UV LED curing process, it has several benefits that make printing more economical and ecological. Its smartly integrated design is convenient for trouble-free operation.

COLORJET VULCAN - INTRODUCES HUGE ADVANTAGES OF UV LED TECHNIC IN PRINT

Embedded with UV LED lamps for the curing process and has several benefits which makes printing more economical and ecological:

Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet, stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.
Easy Switch OFF and ON: Easily switch ON and OFF without degradation of intensity. Thus, there is no warm up time which leads faster operation with high productivity.
Long life of the Machine: LED has a long life. Thus, they offer long term benefits without lamp down time or any other consumable cost. Power Saving: Consumes low electricity. Thus, it saves power and offers cost effective solution.
Environmental Friendly: Doesn’t consist mercury (a non-disposable element) and ozone gas that can harm the environment.

COLORJET VULCAN - THE ADVANTAGES OF MULTI-LAYER PRINTING

In multi-layer technology, print heads are arranged in staggered or inline format. This means that the multi-layer technology offers unbeatable quality by mixing appropriate portion of white with other color to enhance the visibility of the print. This can be proved best for the backlit print application.

The multi-layer technology offers the following printing modes of white color:

Pre White : Printing white underneath the main color.
Post White : Printing white on the top of the color.
Sandwich White : Printing white in between the main color like Color-White-Color.

FEATURES

Built on a robust industrial production platform and never seen before automation, this industrial UV printing machine is capable of printing high volumes and withstands heavy-duty cycles without compromising on the quality. VULCAN is powered by a V8 processor that delivers unmatched printing quality at a lightning-fast speed of up to 73 SQM/Hr. This industrial UV printing machine is equipped with a highly interactive and user-friendly interface. Its advanced feeder technology with pneumatic controlled rubber rollers ensures proper media feeding and maintains proper tension of media. ColorJet’s variable drop technology with a minimum drop size of 3.5 Pico liters ensures smooth and quality printing by correct placement of each ink drop on the media. ColorJet’s intelligent pass optimization specially designed to prevent banding and the three-layer printing enhances the quality of graphic design for the same day and night effect in backlit signage. The integrated eco cooling system maintains print substrate temperature and prevents media distortion. This back to back printing machine comes equipped with carriage safety sensors, which helps to protect the print heads from the accidental crash with a print substrate.

V8 Processor
Air Automatic In Regulator
ECO Cooling System
White Color Cooling Technology
Feeder Technology
Variable Drop Technology with Minimum drop size of 3.5 PL
Flexi Layer Technology
QI Quality Panel
User Friendly Operation System
Wide Range of Media

SPECIFICATION

VULCAN works on drop-on-demand, variable drop piezoelectric inkjet technology that prints up to the high quality of 960x2400 DPI. With the option of 7 Colors CMYK LC LM plus white, it caters to a wide range of print applications. VULCAN fills the current gap in the roll-to-roll production market and it is the perfect choice for print service providers who want efficiency in production while lowering operating costs, resulting in growing profits.

VULCAN 3201
Model				V3201Y		V3201R			V3201R6
Printing Technology				Drop-on-demand, Piezo Electric Inkjet
Print Heads				Industrial Grade Jetting Assemblies
No. of Print Heads				2 to 7 (3.5 PL)		2 to 7 (7 PL)			2 to 9 (5 PL)
Media			Width	3300 mm
			Thickness	Maximum 10 mm with liner
			Roll Outer Diameter	Maximum 300 mm
			Roll Weight	Maximum 150 kgs
			Core Diameter	2" & 3"
			Types	Ceiling Film, Vinyl, Advertising Banner, PET, wall paper, Fabric, and many more
Printing Width				Maximum 3200mm
Inks			Types	UV Curable Ink
			Color	6 Colors (CMYK LC LM) + W (LC LM optional)					6 Colors (CMYK LC LM) + W (LC LM optional)+V
Printing Resolution (dots per inch)				Maximum 2400 dpi
Distance Accuracy				Error of less than ±0.3 % of distance travelled
Connectivity				High speed USB 3.0
Power Requirements				AC 220 V ± 10%, 30 A, 50/60 Hz
Dimensions (Printer only)				5300 mm x 1080 mm x 1680 mm (LxWxH)
Dimensions (With Packing)				5880 mm x 1220 mm x 1940 mm (LxWxH)
RIP software				Onyx (Colorjet Edition)
Weight				2550 Kgs N.W., 2850 Kgs G.W
Environmental		Power ON		Temperature: 18 to 28℃ Humidity: 35 to 80%RH (non-condensing)
		Power OFF		Temperature: 5 to 40℃ Humidity: 20 to 80%RH (non-condensing)
				Printing Speed (In Sq. Meter / Hrs)
				Kyocera		Gen 5			Gen6
				1 Row	1 Row	1 Row	2 Row	3 Row	1 Row	2 Row	3 Row
Mode	Print DPI		Passes	2 Head	4 Head	2 Head	4 Head	6 Head	2 Head	4 Head	6 Head
Mode 1	600 x 600		4	-	-	-	-	-	29	53	73
Mode 2	600 x 900		6	-	-	19	34	51	24	43	56
Mode 3	600 x 1200		8	-	-	16	28	43	18	33	44
Mode 4	960 x 900		6	35	-	-	-	-	-	-	-
Mode 5	960 x 1200		8	27	-	-	-	-	-	-	-
Mode 6	960 x 1800		12	17	-	-	-	-	-	-	-
Mode 8	960 x 1200		4	-	65	-	-	-	-	-	-
Mode 9	960 x 1800		6	-	43	-	-	-	-	-	-
Mode 10	960 x 2400		8	-	32	-	-	-	-	-	-

APPLICATIONS

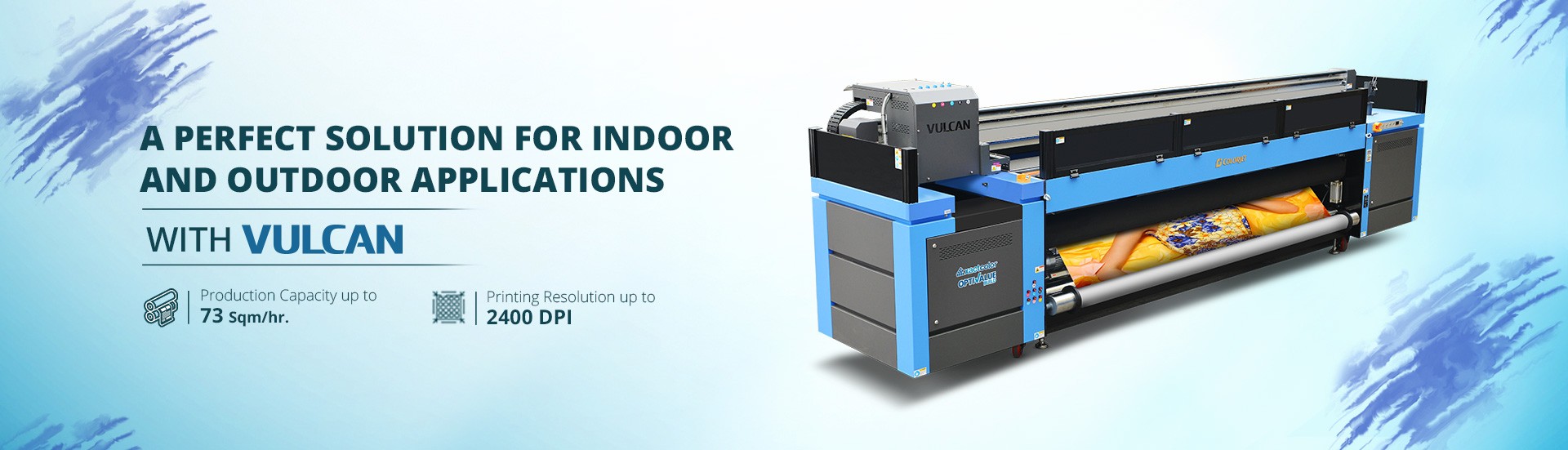

A PERFECT SOLUTION FOR INDOOR AND OUTDOOR APPLICATION

VULCAN, the ideal UV roll to roll printer is the perfect solution for indoor and outdoor applications. This back to back printing machine is used for printing banners, signage, billboards, terminal graphics, bus shelters, tradeshow graphics, window displays, flags, wall graphics, building wraps, POP and POS graphics, etc. It is equipped with the capability to print 3-layer, 4-layer, and 5-layer printing. The use of LED lamps and UV inks list this industrial UV printing machine as a green and nature-friendly product.

Banners
